How to Use SO2: Examples, Pinouts, and Specs

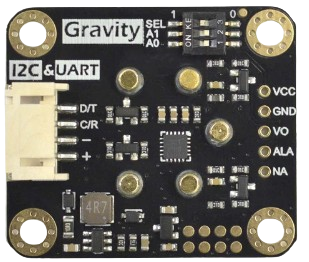

• The SO2 sensor is an electronic component designed to detect and measure the concentration of sulfur dioxide (SO2) gas in the environment. It is commonly used in industrial, environmental, and safety applications to monitor air quality and ensure compliance with regulatory standards.
• Common applications include:
  • Industrial emissions monitoring
  • Environmental air quality stations
  • Gas leak detection in chemical plants
  • Indoor air quality monitoring
  • Research and development in atmospheric studies

• Measurement Range: 0–20 ppm (parts per million) or higher, depending on the sensor model
• Sensitivity: Typically 0.1–0.5 ppm
• Operating Voltage: 3.3V–5V DC
• Operating Current: ~10 mA (varies by model)
• Response Time: <30 seconds
• Operating Temperature: -20°C to 50°C
• Operating Humidity: 15%–90% RH (non-condensing)
• Output Signal: Analog voltage or digital signal (I2C, UART, or SPI, depending on the sensor)

Below is an example pinout for a typical SO2 sensor module:

Note: Pin configuration may vary depending on the specific sensor model. Always refer to the manufacturer's datasheet for exact details.

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V DC power source and the GND pin to ground.
2. Signal Connections:
   • For analog output: Connect the AOUT pin to an analog input pin on your microcontroller or ADC (Analog-to-Digital Converter).
   • For digital output: Connect the DOUT pin to a digital input pin on your microcontroller.
   • For I2C communication (if supported): Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller.
3. Warm-Up Period: Allow the sensor to warm up for 2–3 minutes after powering it on to ensure accurate readings.
4. Read Data:
   • For analog output: Read the voltage from the AOUT pin and convert it to SO2 concentration using the sensor's sensitivity value (refer to the datasheet for the conversion formula).
   • For digital output: Monitor the DOUT pin for HIGH/LOW signals, which indicate whether the SO2 concentration exceeds a preset threshold.

• Calibration: Periodically calibrate the sensor using a known SO2 concentration to maintain accuracy.
• Placement: Install the sensor in a location with good airflow and away from sources of interference (e.g., high humidity, dust, or other gases).
• Power Supply: Use a stable and noise-free power source to avoid fluctuations in sensor readings.
• Environmental Conditions: Avoid exposing the sensor to extreme temperatures, humidity, or corrosive environments, as these can degrade its performance.

Below is an example of how to interface an analog SO2 sensor with an Arduino UNO:

// Define the analog pin connected to the sensor's AOUT pin
const int sensorPin = A0;

// Variable to store the sensor's analog reading
int sensorValue = 0;

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
}

void loop() {
  // Read the analog value from the sensor
  sensorValue = analogRead(sensorPin);

  // Convert the analog value to voltage (assuming 5V reference)
  float voltage = sensorValue * (5.0 / 1023.0);

  // Convert voltage to SO2 concentration (example formula, adjust as needed)
  // Assume sensitivity is 0.2V per ppm
  float so2Concentration = voltage / 0.2;

  // Print the SO2 concentration to the Serial Monitor
  Serial.print("SO2 Concentration: ");
  Serial.print(so2Concentration);
  Serial.println(" ppm");

  // Wait for 1 second before the next reading
  delay(1000);
}

Note: The conversion formula in the code is an example. Refer to the sensor's datasheet for the exact formula based on its sensitivity and output characteristics.

1. No Output Signal:

   • Ensure the sensor is properly powered (check VCC and GND connections).
   • Verify that the sensor has completed its warm-up period.
   • Check for loose or damaged wires.

2. Inaccurate Readings:

   • Calibrate the sensor using a known SO2 concentration.
   • Ensure the sensor is not exposed to extreme environmental conditions.
   • Use a stable power supply to minimize noise.

3. Slow Response Time:

   • Ensure the sensor is installed in an area with adequate airflow.
   • Check for obstructions or contaminants on the sensor surface.

4. Interference from Other Gases:

   • Some SO2 sensors may have cross-sensitivity to other gases. Use filters or select a sensor with high specificity for SO2.

• Q: Can the sensor detect other gases besides SO2?
  A: Some SO2 sensors may have cross-sensitivity to gases like NO2 or H2S. Check the datasheet for details on cross-sensitivity.

• Q: How often should I calibrate the sensor?
  A: Calibration frequency depends on the application and environmental conditions. For critical applications, calibrate monthly or as recommended by the manufacturer.

• Q: Can I use the sensor outdoors?
  A: Yes, but ensure it is protected from extreme weather conditions and contaminants.

• Q: What is the lifespan of the sensor?
  A: The typical lifespan of an SO2 sensor is 1–2 years, depending on usage and environmental factors.
