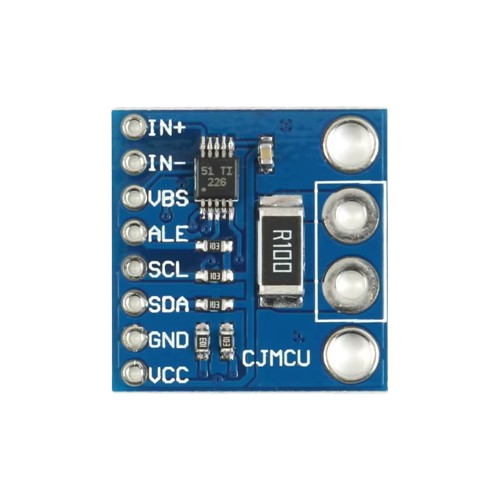

Image of INA226Design with INA226 in Cirkit Designer

Introduction

The INA226 is a high-side current shunt monitor with an integrated I2C interface, designed to measure voltage, current, and power in a wide range of applications. It features a precision 16-bit analog-to-digital converter (ADC) for accurate measurements and operates with a supply voltage range of 2.7V to 5.5V, making it ideal for battery-powered devices. The INA226 is commonly used in power management systems, battery monitoring, and industrial equipment.

Explore Projects Built with INA226

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Battery-Powered Load Cell Amplifier with INA125 and LM324: A project utilizing INA226 in a practical application
Battery-Powered Load Cell Amplifier with INA125 and LM324

This circuit is a load cell signal conditioning and amplification system. It uses an INA125 instrumentation amplifier to amplify the differential signal from a load cell, with additional filtering and gain control provided by potentiometers and capacitors. The amplified signal is then monitored by a digital voltmeter, and the entire system is powered by a 12V battery with a step-up boost converter to provide stable voltage.

Open Project in Cirkit Designer
Image of Solar-Powered Environmental Monitoring System with ESP32-C3 and MPPT Charge Control: A project utilizing INA226 in a practical application
Solar-Powered Environmental Monitoring System with ESP32-C3 and MPPT Charge Control

This circuit is designed for solar energy management and monitoring. It includes a 12V AGM battery charged by solar panels through an MPPT charge controller, with voltage monitoring provided by an INA3221 sensor. Additionally, a 3.7V battery is connected to an ESP32-C3 microcontroller and an AHT21 sensor for environmental data collection, with power management handled by a Waveshare Solar Manager.

Open Project in Cirkit Designer

Common Applications

Technical Specifications

Key Technical Details

Parameter Value
Supply Voltage (Vcc) 2.7V to 5.5V
Input Voltage Range 0V to 36V
Current Measurement Range Determined by external shunt resistor
ADC Resolution 16-bit
Communication Interface I2C (up to 400kHz)
Operating Temperature -40°C to +125°C
Power Consumption 330µA (typical)

Pin Configuration and Descriptions

Pin Name Pin Number Description
V+ 1 Positive supply voltage (2.7V to 5.5V)
GND 2 Ground connection
SCL 3 I2C clock line
SDA 4 I2C data line
A0 5 I2C address selection pin 0
A1 6 I2C address selection pin 1
VIN+ 7 Positive input for differential voltage sensing
VIN- 8 Negative input for differential voltage sensing

Usage Instructions

How to Use the INA226 in a Circuit

  1. Power Supply: Connect the V+ pin to a 2.7V to 5.5V power source and the GND pin to ground.
  2. Shunt Resistor: Place a precision shunt resistor between the load and ground. Connect the VIN+ and VIN- pins across the shunt resistor to measure the voltage drop.
  3. I2C Interface: Connect the SCL and SDA pins to the corresponding I2C lines of your microcontroller. Use pull-up resistors (typically 4.7kΩ) on the SCL and SDA lines.
  4. Address Configuration: Use the A0 and A1 pins to set the I2C address of the INA226. These pins can be connected to V+ or GND to select one of 16 possible addresses.
  5. Bypass Capacitor: Place a 0.1µF ceramic capacitor close to the V+ pin for power supply decoupling.

Important Considerations

Example Code for Arduino UNO

Below is an example of how to use the INA226 with an Arduino UNO to measure current and voltage:

#include <Wire.h>

// INA226 I2C address (default: 0x40 if A0 and A1 are grounded)
#define INA226_ADDRESS 0x40

// INA226 register addresses
#define CONFIG_REGISTER 0x00
#define SHUNT_VOLTAGE_REGISTER 0x01
#define BUS_VOLTAGE_REGISTER 0x02

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Initialize serial communication for debugging

  // Configure the INA226 (default configuration)
  Wire.beginTransmission(INA226_ADDRESS);
  Wire.write(CONFIG_REGISTER); // Point to the configuration register
  Wire.write(0x45); // MSB of configuration (example value)
  Wire.write(0x27); // LSB of configuration (example value)
  Wire.endTransmission();
}

void loop() {
  float shuntVoltage = readRegister(SHUNT_VOLTAGE_REGISTER) * 0.0025; // Convert to volts
  float busVoltage = readRegister(BUS_VOLTAGE_REGISTER) * 0.00125; // Convert to volts

  Serial.print("Shunt Voltage (V): ");
  Serial.println(shuntVoltage);
  Serial.print("Bus Voltage (V): ");
  Serial.println(busVoltage);

  delay(1000); // Wait 1 second before the next reading
}

uint16_t readRegister(uint8_t reg) {
  Wire.beginTransmission(INA226_ADDRESS);
  Wire.write(reg); // Point to the desired register
  Wire.endTransmission();

  Wire.requestFrom(INA226_ADDRESS, 2); // Request 2 bytes
  uint16_t value = (Wire.read() << 8) | Wire.read(); // Combine MSB and LSB
  return value;
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No I2C Communication:

    • Ensure the SCL and SDA lines have proper pull-up resistors (typically 4.7kΩ).
    • Verify the I2C address matches the configuration of the A0 and A1 pins.
    • Check for loose or incorrect wiring.
  2. Incorrect Voltage or Current Readings:

    • Verify the shunt resistor value and connections.
    • Ensure the VIN+ and VIN- pins are connected across the shunt resistor.
    • Minimize noise by using short, twisted-pair wires for the shunt connections.
  3. Device Not Responding:

    • Confirm the power supply voltage is within the 2.7V to 5.5V range.
    • Check for proper bypass capacitor placement near the V+ pin.

FAQs

Q: Can the INA226 measure negative currents?
A: No, the INA226 is designed for unidirectional current measurement. For bidirectional current sensing, additional circuitry or a different device is required.

Q: What is the maximum current the INA226 can measure?
A: The maximum current depends on the value of the external shunt resistor and the maximum measurable voltage drop across it (±81.92mV).

Q: Can I use the INA226 with a 3.3V microcontroller?
A: Yes, the INA226 is compatible with 3.3V systems as long as the supply voltage (V+) is within the 2.7V to 5.5V range.
