How to Use 4ohm 5W speaker: Examples, Pinouts, and Specs

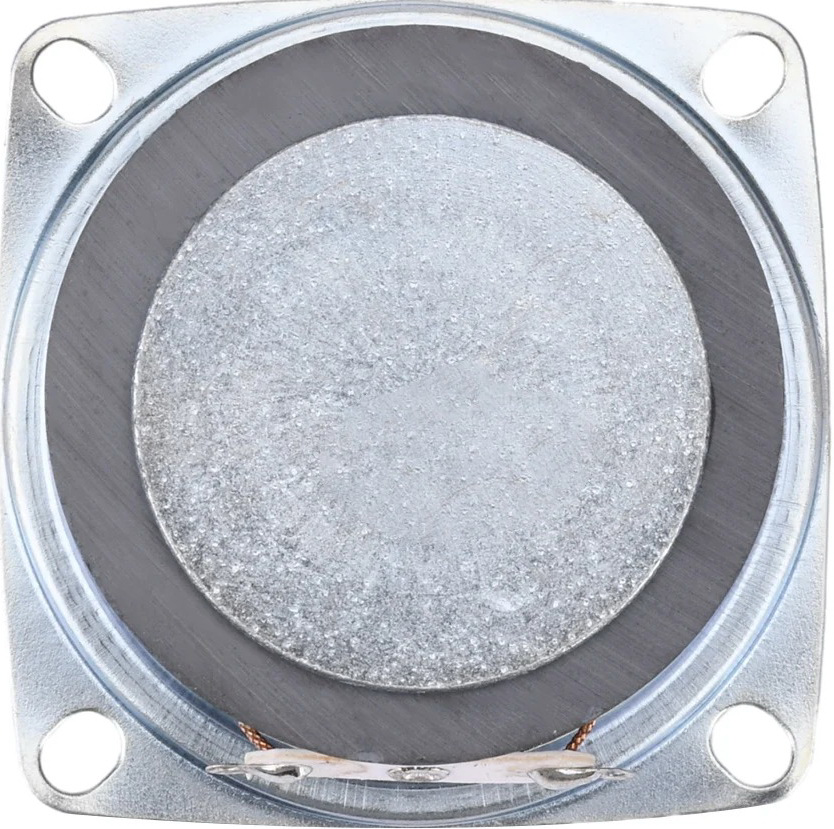

The 4-Ohm 5W Speaker (Manufacturer: China, Part ID: 2) is a compact and efficient audio output device designed to convert electrical signals into sound. With a resistance of 4 ohms and a power rating of 5 watts, this speaker is ideal for low- to medium-power audio applications. It delivers clear and reliable sound reproduction, making it suitable for use in devices such as radios, televisions, home theater systems, and DIY audio projects.

• Consumer Electronics: Radios, televisions, and portable audio devices.
• DIY Projects: Custom audio systems, Arduino-based sound projects.
• Home Theater Systems: Satellite speakers or small surround sound setups.
• Educational Use: Demonstrations of sound and audio principles in classrooms.

Below are the key technical details of the 4-Ohm 5W Speaker:

The speaker has two terminals for electrical connections:

Note: Ensure proper polarity when connecting the speaker to avoid phase cancellation or reduced sound quality.

1. Connect to an Amplifier: The speaker requires an audio amplifier to drive it effectively. Ensure the amplifier's output impedance matches the speaker's 4-ohm rating.
2. Polarity Matters: Connect the positive terminal of the speaker to the amplifier's positive output and the negative terminal to the ground or negative output.
3. Power Handling: Do not exceed the 5-watt power rating to avoid damaging the speaker.
4. Mounting: Secure the speaker in an enclosure or mounting bracket to enhance sound quality and protect it from physical damage.

• Impedance Matching: Ensure the amplifier's output impedance matches the speaker's 4-ohm rating for optimal performance.
• Power Supply: Use an amplifier that provides a maximum of 5 watts to prevent overloading the speaker.
• Enclosure Design: For better sound quality, mount the speaker in a properly designed enclosure to enhance bass response and reduce distortion.
• Avoid Overdriving: Playing audio at excessively high volumes can damage the speaker cone or coil.

To use the speaker with an Arduino UNO, you will need an audio amplifier module (e.g., PAM8403). Below is an example of how to generate simple tones using the Arduino tone() function:

/*
  Example: Generating tones with a 4-Ohm 5W Speaker
  Components:
  - Arduino UNO
  - PAM8403 amplifier module
  - 4-Ohm 5W Speaker
*/

// Define the pin connected to the amplifier's input
const int speakerPin = 9;

void setup() {
  // No setup required for tone generation
}

void loop() {
  // Play a 440 Hz tone (A4) for 1 second
  tone(speakerPin, 440, 1000);
  delay(1000); // Wait for 1 second

  // Play a 523 Hz tone (C5) for 1 second
  tone(speakerPin, 523, 1000);
  delay(1000); // Wait for 1 second
}

Note: The Arduino cannot directly drive the speaker. Always use an amplifier module to avoid damaging the microcontroller.

1. No Sound Output:

   • Cause: Incorrect wiring or loose connections.
   • Solution: Verify the connections between the amplifier, speaker, and power source. Ensure proper polarity.

2. Distorted Sound:

   • Cause: Overdriving the speaker or using an incompatible amplifier.
   • Solution: Reduce the volume or use an amplifier with a power output that matches the speaker's rating.

3. Low Volume:

   • Cause: Insufficient amplifier power or poor enclosure design.
   • Solution: Use a more powerful amplifier (up to 5 watts) and ensure the speaker is mounted in a proper enclosure.

4. Speaker Damage:

   • Cause: Exceeding the power rating or physical damage.
   • Solution: Replace the speaker and ensure the amplifier's output does not exceed 5 watts.

• Check Connections: Ensure all wires are securely connected and free of corrosion.
• Test with a Multimeter: Measure the speaker's impedance to confirm it is approximately 4 ohms.
• Inspect the Amplifier: Verify that the amplifier is functioning correctly and providing the appropriate output.
• Use a Test Tone: Play a known test tone to isolate issues with the speaker or amplifier.

By following these guidelines, you can ensure optimal performance and longevity of your 4-Ohm 5W Speaker.
