How to Use ESP8266: Examples, Pinouts, and Specs

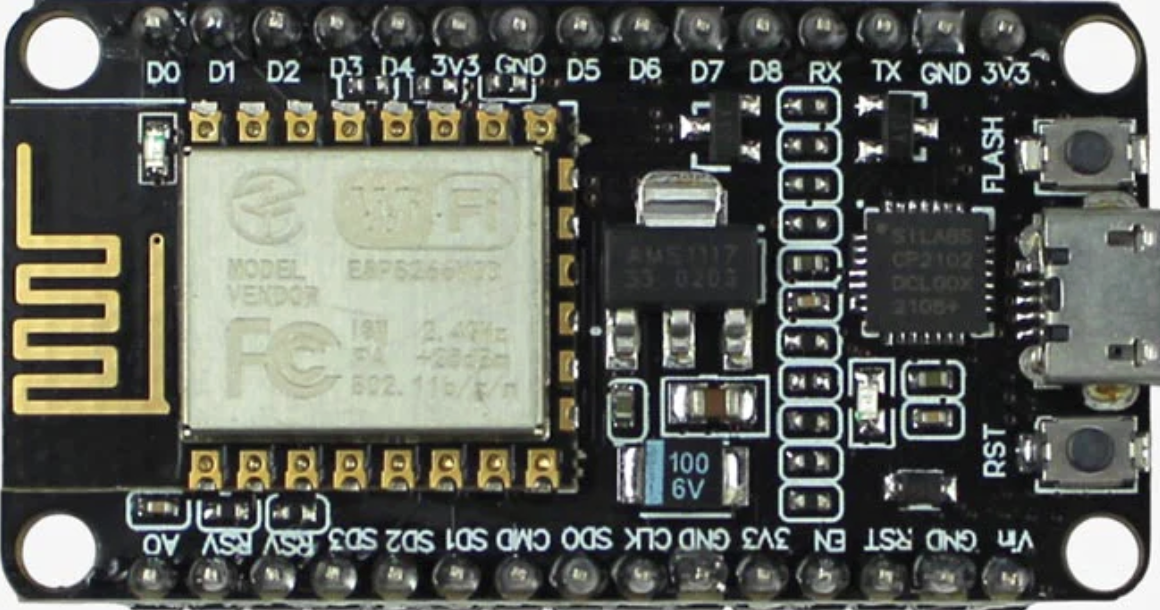

The ESP8266 is a low-cost Wi-Fi microchip with a full TCP/IP stack and microcontroller capability. It is widely used in Internet of Things (IoT) applications due to its affordability, compact size, and versatility. The ESP8266 can operate as both a standalone microcontroller or as a Wi-Fi module for other microcontrollers, making it a popular choice for hobbyists and professionals alike.

• Home automation systems
• Wireless sensor networks
• Smart appliances
• IoT prototyping and development
• Remote data logging and monitoring

The ESP8266 is available in various module formats, with the ESP-01 being one of the most common. Below are the key technical details:

• Operating Voltage: 3.0V to 3.6V (3.3V recommended)
• Wi-Fi Standards: 802.11 b/g/n
• Processor: 32-bit Tensilica L106 running at 80 MHz (can be overclocked to 160 MHz)
• Flash Memory: 512 KB to 4 MB (depending on the module)
• RAM: 64 KB instruction RAM, 96 KB data RAM
• GPIO Pins: Up to 17 (depending on the module)
• Communication Protocols: UART, SPI, I2C, PWM
• Power Consumption:
  • Deep Sleep: ~10 µA
  • Idle: ~70 mA
  • Active: ~200 mA (transmitting)
• Operating Temperature: -40°C to 125°C

The ESP-01 module has 8 pins. Below is the pinout and description:

1. Power Supply: Ensure the ESP8266 is powered with a stable 3.3V supply. Do not exceed 3.6V, as this may damage the module.
2. Connections:
   • Connect the GND pin to the ground of your circuit.
   • Connect the VCC pin to a 3.3V power source.
   • Pull the CH_PD pin high (connect to 3.3V) to enable the chip.
   • Use the RX and TX pins for UART communication with a microcontroller or USB-to-serial adapter.
3. Boot Mode Selection:
   • For normal operation, ensure GPIO0 is pulled high.
   • For programming the module, pull GPIO0 low before powering up or resetting the module.

• Use a level shifter or voltage divider if interfacing with a 5V microcontroller, as the ESP8266 operates at 3.3V logic levels.
• Add a decoupling capacitor (e.g., 10 µF) near the VCC pin to stabilize the power supply.
• Avoid excessive current draw on the GPIO pins; each pin can source/sink a maximum of 12 mA.

Below is an example of how to use the ESP8266 with an Arduino UNO to send data to a Wi-Fi network.

• ESP8266 VCC → 3.3V (use a voltage regulator if necessary)
• ESP8266 GND → Arduino GND
• ESP8266 RX → Arduino TX (via a voltage divider to step down 5V to 3.3V)
• ESP8266 TX → Arduino RX
• ESP8266 CH_PD → 3.3V
• ESP8266 GPIO0 → 3.3V (for normal operation)

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial esp8266(2, 3); // RX = Pin 2, TX = Pin 3

void setup() {
  Serial.begin(9600); // Start Serial Monitor communication
  esp8266.begin(9600); // Start ESP8266 communication

  Serial.println("Initializing ESP8266...");
  esp8266.println("AT"); // Send AT command to check communication
  delay(1000);

  // Connect to Wi-Fi network
  esp8266.println("AT+CWJAP=\"YourSSID\",\"YourPassword\"");
  delay(5000); // Wait for connection to establish

  Serial.println("ESP8266 setup complete.");
}

void loop() {
  // Forward data from ESP8266 to Serial Monitor
  if (esp8266.available()) {
    Serial.write(esp8266.read());
  }

  // Forward data from Serial Monitor to ESP8266
  if (Serial.available()) {
    esp8266.write(Serial.read());
  }
}

• Replace "YourSSID" and "YourPassword" with your Wi-Fi network credentials.
• Use a 3.3V voltage regulator if your power source exceeds 3.3V.

1. ESP8266 Not Responding to AT Commands

   • Ensure the CH_PD pin is pulled high.
   • Verify the baud rate (default is 115200, but some modules use 9600).
   • Check the power supply for stability and sufficient current.

2. Wi-Fi Connection Fails

   • Double-check the SSID and password.
   • Ensure the router is within range and supports 2.4 GHz (ESP8266 does not support 5 GHz).

3. Module Overheating

   • Verify that the input voltage does not exceed 3.6V.
   • Ensure proper ventilation and avoid prolonged high-current operations.

• Use a USB-to-serial adapter with a 3.3V output for easier debugging.
• Test the module with a simple AT command (AT) to confirm basic functionality.
• If the module is unresponsive, try resetting it by toggling the RST pin.

By following this documentation, you can effectively integrate the ESP8266 into your projects and troubleshoot common issues.
