How to Use Arduino Mega 2560: Examples, Pinouts, and Specs

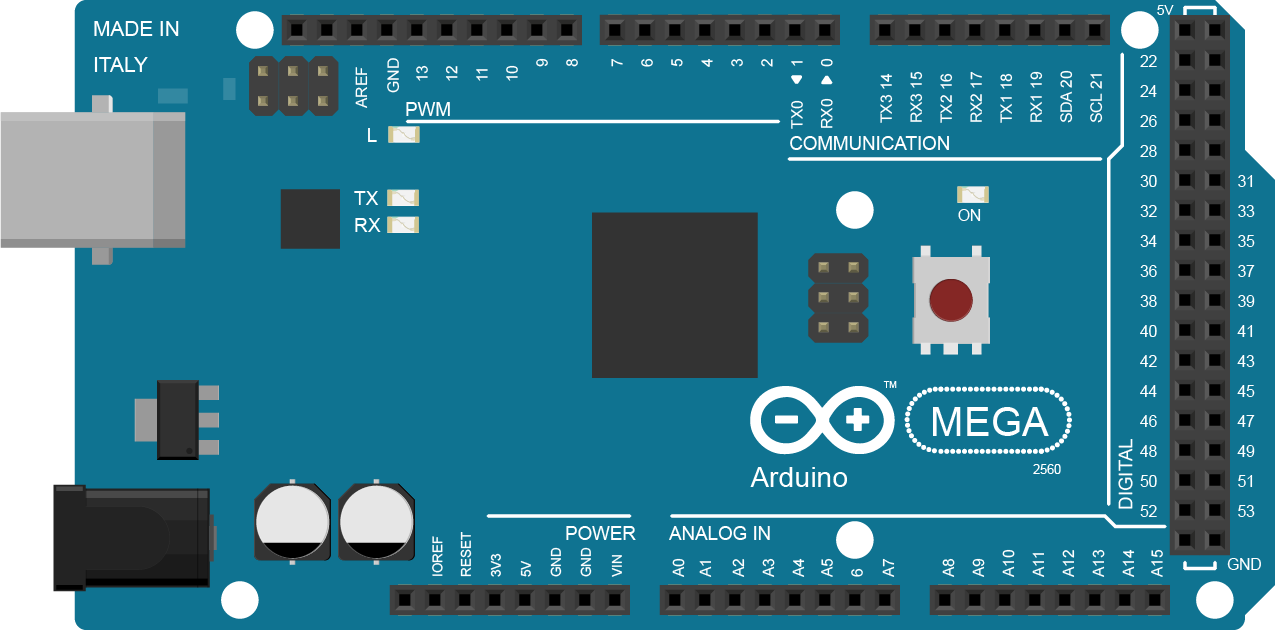

The Arduino Mega 2560 is a powerful microcontroller board based on the ATmega2560. It features 54 digital input/output pins (15 of which can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. This board is designed for projects requiring a large number of I/O pins or more memory than other Arduino boards, making it ideal for complex electronics and robotics applications.

• Robotics and automation systems
• IoT (Internet of Things) devices
• Data acquisition and logging
• Prototyping large-scale projects
• Multi-sensor integration
• LED matrix displays and advanced lighting systems

1. Powering the Board:

   • Connect the board to your computer via the USB Type-B cable for programming and power.
   • Alternatively, use an external power supply (7-12V) via the DC power jack or VIN pin.

2. Programming:

   • Install the Arduino IDE from the official Arduino website.
   • Select "Arduino Mega 2560" as the board type in the Tools menu.
   • Choose the correct COM port for the board.
   • Write or load your sketch (program) and upload it to the board.

3. Connecting Components:

   • Use the digital pins for digital sensors, actuators, or communication modules.
   • Use the analog pins for sensors that output analog signals.
   • Ensure proper grounding and voltage levels for all connected components.

• Avoid exceeding the maximum current rating (20 mA per I/O pin).
• Use external power for high-current devices like motors or LEDs.
• Use pull-up or pull-down resistors for stable digital input signals.
• Protect the board from electrostatic discharge (ESD) by grounding yourself before handling it.
• Use decoupling capacitors for noise-sensitive circuits.

The following example demonstrates how to blink an LED connected to digital pin 13:

// Blink an LED connected to pin 13
// This example toggles the LED on and off every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

The following example demonstrates how to send and receive data via the Serial Monitor:

// Serial communication example
// This program sends a message to the Serial Monitor and echoes back any input.

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("Arduino Mega 2560 is ready!"); // Send a welcome message
}

void loop() {
  if (Serial.available() > 0) { // Check if data is available to read
    char received = Serial.read(); // Read the incoming byte
    Serial.print("You sent: ");    // Print a response
    Serial.println(received);      // Echo the received character
  }
}

1. The board is not recognized by the computer:

   • Ensure the USB cable is functional and properly connected.
   • Install the necessary drivers for the Arduino Mega 2560.
   • Check if the correct COM port is selected in the Arduino IDE.

2. Sketch upload fails:

   • Verify that "Arduino Mega 2560" is selected as the board type.
   • Ensure no other program is using the COM port.
   • Press the reset button on the board before uploading.

3. Components connected to the board are not working:

   • Double-check the wiring and connections.
   • Ensure the components are compatible with the board's voltage and current ratings.
   • Use a multimeter to verify power supply and signal levels.

4. The board overheats:

   • Avoid drawing excessive current from the I/O pins.
   • Use external power for high-power components.

Q: Can I use the Arduino Mega 2560 with shields designed for the Arduino Uno?
A: Yes, the Arduino Mega 2560 is compatible with most Arduino Uno shields. However, ensure the shield does not rely on specific pins that differ between the two boards.

Q: How do I reset the board?
A: Press the reset button on the board or connect the RESET pin to GND momentarily.

Q: Can I power the board with a battery?
A: Yes, you can use a 9V battery connected to the DC power jack or VIN pin. Ensure the voltage is within the recommended range (7-12V).

Q: What is the maximum length for connecting sensors or modules?
A: For I2C communication, the maximum recommended cable length is approximately 1 meter. For other signals, use proper shielding and signal boosters if needed for longer distances.
