How to Use Buzzer 12mm: Examples, Pinouts, and Specs

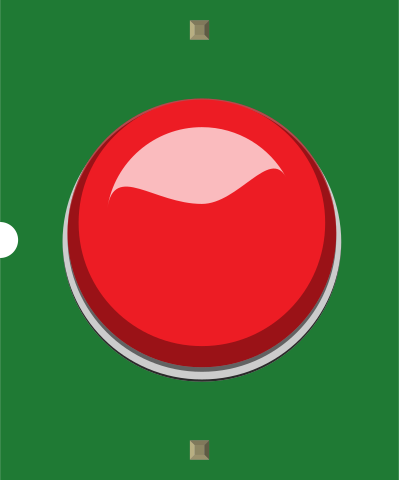

Image of Buzzer 12mm
Cirkit Designer LogoDesign with Buzzer 12mm in Cirkit Designer

Introduction

The Buzzer 12mm is a small, cylindrical sound-producing device designed to emit a tone or beep when powered. It is widely used in electronic circuits for alarms, notifications, and audio feedback. This component is compact, easy to use, and available in both active and passive variants. Active buzzers generate sound when powered, while passive buzzers require an external signal to produce sound.

Explore Projects Built with Buzzer 12mm

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered Tilt-Activated Buzzer Alarm
Image of tilt sensor: A project utilizing Buzzer 12mm in a practical application
This circuit is a simple tilt-activated alarm system. It uses a tilt sensor to detect orientation changes, which then triggers a buzzer powered by a 12V battery to emit a sound when the tilt sensor is activated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered PIR Motion Sensor Alarm with Relay and Buzzer
Image of motion detector using pir motio0n sensor: A project utilizing Buzzer 12mm in a practical application
This circuit is a motion-activated alarm system. It uses a PIR motion sensor to detect movement, which triggers a relay module to activate a buzzer powered by a 9V battery, providing an audible alert.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered LED and Buzzer Control Circuit Using BC547 Transistors
Image of Water level Indicator : A project utilizing Buzzer 12mm in a practical application
This circuit is a multi-indicator system powered by a 9V battery, utilizing three BC547 transistors to control three LEDs (red, green, and yellow) and a buzzer. Each transistor is configured to switch its respective LED and the buzzer on and off, likely based on external signals connected via alligator clips.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
Image of automatic bell system: A project utilizing Buzzer 12mm in a practical application
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Buzzer 12mm

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of tilt sensor: A project utilizing Buzzer 12mm in a practical application
Battery-Powered Tilt-Activated Buzzer Alarm
This circuit is a simple tilt-activated alarm system. It uses a tilt sensor to detect orientation changes, which then triggers a buzzer powered by a 12V battery to emit a sound when the tilt sensor is activated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of motion detector using pir motio0n sensor: A project utilizing Buzzer 12mm in a practical application
Battery-Powered PIR Motion Sensor Alarm with Relay and Buzzer
This circuit is a motion-activated alarm system. It uses a PIR motion sensor to detect movement, which triggers a relay module to activate a buzzer powered by a 9V battery, providing an audible alert.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water level Indicator : A project utilizing Buzzer 12mm in a practical application
Battery-Powered LED and Buzzer Control Circuit Using BC547 Transistors
This circuit is a multi-indicator system powered by a 9V battery, utilizing three BC547 transistors to control three LEDs (red, green, and yellow) and a buzzer. Each transistor is configured to switch its respective LED and the buzzer on and off, likely based on external signals connected via alligator clips.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of automatic bell system: A project utilizing Buzzer 12mm in a practical application
Arduino UNO Controlled School Bell System with DS3231 RTC and Relay Module
This circuit is designed as an automatic school bell system controlled by an Arduino UNO microcontroller. The Arduino is programmed to ring a buzzer at the start of each school period, with a total of 6 periods defined in the code. The DS3231 Real-Time Clock (RTC) module is used for accurate timekeeping, and a relay module interfaces the Arduino with the buzzer to handle the higher current required to drive the buzzer.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Alarm systems (e.g., burglar alarms, fire alarms)
  • Timers and reminders
  • Notification systems in appliances
  • Audio feedback in embedded systems
  • Toys and hobby electronics

Technical Specifications

Below are the key technical details for the Buzzer 12mm:

Parameter Value
Operating Voltage 3V to 12V (typical: 5V)
Current Consumption 10mA to 30mA
Sound Output Level 85dB to 95dB (at 10cm)
Frequency Range 2kHz to 4kHz
Dimensions 12mm diameter, ~9mm height
Operating Temperature -20°C to +60°C
Type Active or Passive

Pin Configuration

The Buzzer 12mm typically has two pins for connection:

Pin Description Notes
Positive (+) Power supply (VCC) Connect to the positive terminal of the power source.
Negative (-) Ground (GND) Connect to the ground of the circuit.

Note: Ensure correct polarity when connecting the buzzer, as reversing the connections may damage the component.

Usage Instructions

How to Use the Buzzer in a Circuit

  1. Identify the Type of Buzzer: Determine whether the buzzer is active or passive. Active buzzers only require a DC voltage to operate, while passive buzzers need a PWM (Pulse Width Modulation) signal.
  2. Connect the Pins:
    • Connect the positive (+) pin to the power supply (e.g., 5V).
    • Connect the negative (-) pin to the ground (GND).
  3. For Passive Buzzers: Use a microcontroller (e.g., Arduino) or an oscillator circuit to generate the required signal.

Important Considerations

  • Voltage Range: Ensure the operating voltage is within the specified range (3V to 12V). Exceeding this range may damage the buzzer.
  • Current Limiting: If necessary, use a resistor to limit the current and protect the buzzer.
  • Mounting: Secure the buzzer in place to prevent vibrations or movement during operation.
  • Polarity: Double-check the polarity before powering the buzzer to avoid damage.

Example: Connecting a Passive Buzzer to an Arduino UNO

Below is an example of how to connect and control a passive buzzer using an Arduino UNO:

Circuit Diagram

  • Connect the positive (+) pin of the buzzer to Arduino pin 9.
  • Connect the negative (-) pin of the buzzer to GND.

Arduino Code

// Example code to generate a tone on a passive buzzer using Arduino UNO

// Define the pin connected to the buzzer
const int buzzerPin = 9;

void setup() {
  // Set the buzzer pin as an output
  pinMode(buzzerPin, OUTPUT);
}

void loop() {
  // Generate a tone at 1000 Hz for 500 milliseconds
  tone(buzzerPin, 1000, 500);
  delay(1000); // Wait for 1 second before the next tone

  // Generate a tone at 2000 Hz for 500 milliseconds
  tone(buzzerPin, 2000, 500);
  delay(1000); // Wait for 1 second before the next tone
}

Explanation:

  • The tone() function generates a square wave signal at the specified frequency (in Hz) and duration (in milliseconds).
  • The delay() function introduces a pause between tones.

Troubleshooting and FAQs

Common Issues

  1. No Sound from the Buzzer:

    • Cause: Incorrect polarity or insufficient voltage.
    • Solution: Verify the connections and ensure the power supply matches the operating voltage.
  2. Low or Distorted Sound:

    • Cause: Insufficient current or incorrect signal frequency (for passive buzzers).
    • Solution: Check the power supply and ensure the signal frequency is within the buzzer's range.
  3. Buzzer Overheats:

    • Cause: Excessive voltage or current.
    • Solution: Use a resistor to limit the current and ensure the voltage is within the specified range.

FAQs

Q1: Can I use the Buzzer 12mm with a 3.3V microcontroller?
A1: Yes, the buzzer can operate at 3.3V, but the sound output may be lower compared to 5V operation.

Q2: How do I differentiate between an active and passive buzzer?
A2: Active buzzers typically have a built-in oscillator and produce sound when powered directly. Passive buzzers require an external signal to generate sound.

Q3: Can I use the buzzer for continuous sound output?
A3: Yes, active buzzers can produce continuous sound when powered. For passive buzzers, you need to provide a continuous signal.

Q4: What is the maximum distance at which the buzzer can be heard?
A4: The sound output level (85dB to 95dB) is typically measured at 10cm. The audible distance depends on the environment and background noise levels.
