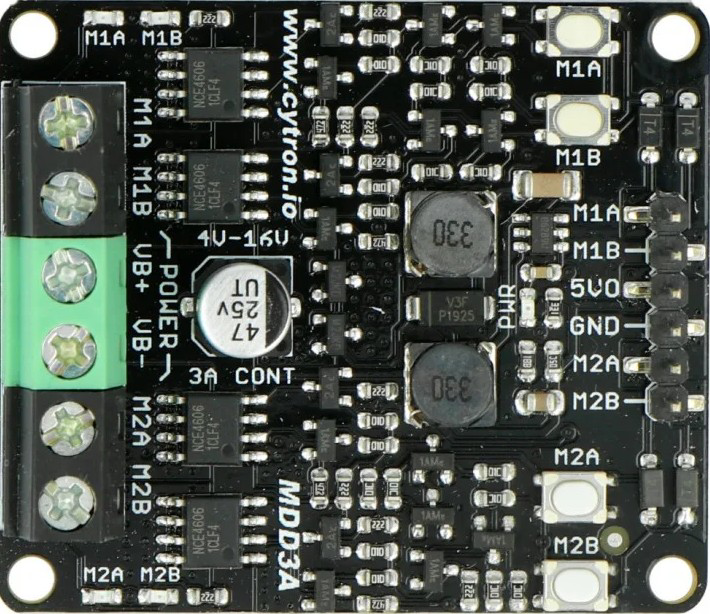

Image of MMD3A Motor Driver
Cirkit Designer LogoDesign with MMD3A Motor Driver in Cirkit Designer

Introduction

The MMD3A Motor Driver is a compact and efficient driver designed to control both DC motors and stepper motors. It is equipped with built-in protection mechanisms, including overcurrent and thermal overload protection, ensuring reliable operation in demanding environments. This motor driver is ideal for robotics, automation systems, and other applications requiring precise motor control.

Explore Projects Built with MMD3A Motor Driver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Mega 2560 Controlled Motor System with I2C Communication and Hall Effect Sensing
Image of Uni1: A project utilizing MMD3A Motor Driver in a practical application
This is a motor control system with feedback and sensor integration. It uses an Arduino Mega 2560 to control MD03 motor drivers for DC motors, receives position and speed feedback from HEDS encoders and Hall sensors, and measures distance with SR02 ultrasonic sensors. Logic level converters ensure compatibility between different voltage levels of the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered RC Car with Massive RC MDEx and MDD10A Motor Driver
Image of Massive RC MDEx: A project utilizing MMD3A Motor Driver in a practical application
This circuit is a remote-controlled motor driver system powered by a LiPo battery. It uses a Massive RC MDEx microcontroller to control an MDD10A dual motor driver, which in turn drives two GM25 DC motors. The R6FG receiver receives remote control signals to manage the motor directions and speeds.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled Motor System with I2C Communication and Hall Effect Sensing
This circuit is designed to control multiple DC motors using MD03 motor drivers, with feedback from hall sensors and rotary encoders, under the management of an Arduino Mega 2560. The system includes logic level converters for I2C communication and uses an ultrasonic sensor for distance measurements. A 12V battery and power supply unit provide the necessary power for the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560-Based Bluetooth-Controlled Robotic Car with MPU6050 and L298N Motor Driver
Image of selfbalancing: A project utilizing MMD3A Motor Driver in a practical application
This circuit is a motor control system using an Arduino Mega 2560, an L298N motor driver, and an MPU6050 accelerometer and gyroscope. The Arduino controls two DC motors via the L298N driver and communicates with the MPU6050 for motion sensing and the HC-05 Bluetooth module for wireless communication. Power is supplied by a 3S LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with MMD3A Motor Driver

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Uni1: A project utilizing MMD3A Motor Driver in a practical application
Arduino Mega 2560 Controlled Motor System with I2C Communication and Hall Effect Sensing
This is a motor control system with feedback and sensor integration. It uses an Arduino Mega 2560 to control MD03 motor drivers for DC motors, receives position and speed feedback from HEDS encoders and Hall sensors, and measures distance with SR02 ultrasonic sensors. Logic level converters ensure compatibility between different voltage levels of the components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Massive RC MDEx: A project utilizing MMD3A Motor Driver in a practical application
Battery-Powered RC Car with Massive RC MDEx and MDD10A Motor Driver
This circuit is a remote-controlled motor driver system powered by a LiPo battery. It uses a Massive RC MDEx microcontroller to control an MDD10A dual motor driver, which in turn drives two GM25 DC motors. The R6FG receiver receives remote control signals to manage the motor directions and speeds.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Mega 2560 Controlled Motor System with I2C Communication and Hall Effect Sensing
This circuit is designed to control multiple DC motors using MD03 motor drivers, with feedback from hall sensors and rotary encoders, under the management of an Arduino Mega 2560. The system includes logic level converters for I2C communication and uses an ultrasonic sensor for distance measurements. A 12V battery and power supply unit provide the necessary power for the system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of selfbalancing: A project utilizing MMD3A Motor Driver in a practical application
Arduino Mega 2560-Based Bluetooth-Controlled Robotic Car with MPU6050 and L298N Motor Driver
This circuit is a motor control system using an Arduino Mega 2560, an L298N motor driver, and an MPU6050 accelerometer and gyroscope. The Arduino controls two DC motors via the L298N driver and communicates with the MPU6050 for motion sensing and the HC-05 Bluetooth module for wireless communication. Power is supplied by a 3S LiPo battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications:

  • Robotics and automation systems
  • Conveyor belt systems
  • Remote-controlled vehicles
  • CNC machines
  • DIY electronics projects

Technical Specifications

The MMD3A Motor Driver is designed to deliver high performance while maintaining safety and reliability. Below are its key technical details:

Key Specifications:

Parameter Value
Operating Voltage Range 6V to 30V
Continuous Current 3A per channel
Peak Current 5A per channel (short duration)
Motor Channels 2 (independent or combined)
Control Logic Voltage 3.3V or 5V (logic level compatible)
PWM Frequency Up to 20 kHz
Protection Features Overcurrent, thermal shutdown
Dimensions 40mm x 30mm x 15mm

Pin Configuration:

The MMD3A Motor Driver has a total of 8 pins. Below is the pinout and description:

Pin Number Pin Name Description
1 VCC Motor power supply (6V to 30V)
2 GND Ground connection
3 IN1 Input signal for Motor A direction control
4 IN2 Input signal for Motor A speed control (PWM)
5 IN3 Input signal for Motor B direction control
6 IN4 Input signal for Motor B speed control (PWM)
7 OUTA Output terminal for Motor A
8 OUTB Output terminal for Motor B

Usage Instructions

The MMD3A Motor Driver is straightforward to use in a circuit. Follow the steps below to integrate it into your project:

Connecting the MMD3A Motor Driver:

  1. Power Supply: Connect the VCC pin to a power source (6V to 30V) and the GND pin to the ground.
  2. Motor Connections:
    • Connect the motor terminals to the OUTA and OUTB pins.
    • For dual-motor setups, connect Motor A to OUTA and Motor B to OUTB.
  3. Control Signals:
    • Use IN1 and IN2 to control Motor A's direction and speed.
    • Use IN3 and IN4 to control Motor B's direction and speed.
    • Provide PWM signals to IN2 and IN4 for speed control.
  4. Logic Voltage: Ensure the control signals are compatible with the driver’s logic voltage (3.3V or 5V).

Example: Using MMD3A with Arduino UNO

Below is an example Arduino sketch to control two DC motors using the MMD3A Motor Driver:

// Define motor control pins
const int IN1 = 3;  // Motor A direction control
const int IN2 = 5;  // Motor A speed control (PWM)
const int IN3 = 6;  // Motor B direction control
const int IN4 = 9;  // Motor B speed control (PWM)

void setup() {
  // Set motor control pins as outputs
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
  pinMode(IN3, OUTPUT);
  pinMode(IN4, OUTPUT);
}

void loop() {
  // Example: Run Motor A forward at 50% speed
  digitalWrite(IN1, HIGH);  // Set direction
  analogWrite(IN2, 128);    // Set speed (128 = 50% duty cycle)

  // Example: Run Motor B backward at 75% speed
  digitalWrite(IN3, LOW);   // Set direction
  analogWrite(IN4, 192);    // Set speed (192 = 75% duty cycle)

  delay(2000);  // Run motors for 2 seconds

  // Stop both motors
  analogWrite(IN2, 0);      // Stop Motor A
  analogWrite(IN4, 0);      // Stop Motor B

  delay(2000);  // Wait for 2 seconds
}

Best Practices:

  • Use a decoupling capacitor (e.g., 100µF) across the VCC and GND pins to stabilize the power supply.
  • Ensure the motor's current rating does not exceed the driver’s maximum current capacity.
  • Avoid running the motor driver at peak current for extended periods to prevent overheating.
  • Use proper heat dissipation methods if the driver operates near its maximum ratings.

Troubleshooting and FAQs

Common Issues:

  1. Motor Not Running:

    • Cause: Incorrect wiring or insufficient power supply.
    • Solution: Double-check all connections and ensure the power supply voltage is within the specified range.
  2. Overheating:

    • Cause: Prolonged operation at high current or insufficient ventilation.
    • Solution: Reduce the motor load or improve heat dissipation (e.g., add a heatsink).
  3. Erratic Motor Behavior:

    • Cause: Noise in the control signals or unstable power supply.
    • Solution: Use shielded cables for control signals and add a decoupling capacitor to the power supply.
  4. Driver Shuts Down Unexpectedly:

    • Cause: Overcurrent or thermal protection triggered.
    • Solution: Check the motor's current draw and ensure it is within the driver’s limits.

FAQs:

Q1: Can the MMD3A control stepper motors?
A1: Yes, the MMD3A can control stepper motors by driving the coils in a coordinated manner. However, additional logic or a microcontroller is required to generate the stepper motor control signals.

Q2: What is the maximum PWM frequency supported?
A2: The MMD3A supports PWM frequencies up to 20 kHz, making it suitable for high-speed motor control.

Q3: Can I use the MMD3A with a 3.3V microcontroller?
A3: Yes, the MMD3A is compatible with both 3.3V and 5V logic levels.

Q4: Is reverse polarity protection included?
A4: No, the MMD3A does not have built-in reverse polarity protection. Ensure correct polarity when connecting the power supply.

By following this documentation, you can effectively integrate the MMD3A Motor Driver into your projects and troubleshoot common issues with ease.
