How to Use Lipo Lithium Polymer Ion Li-polymer Battery: Examples, Pinouts, and Specs

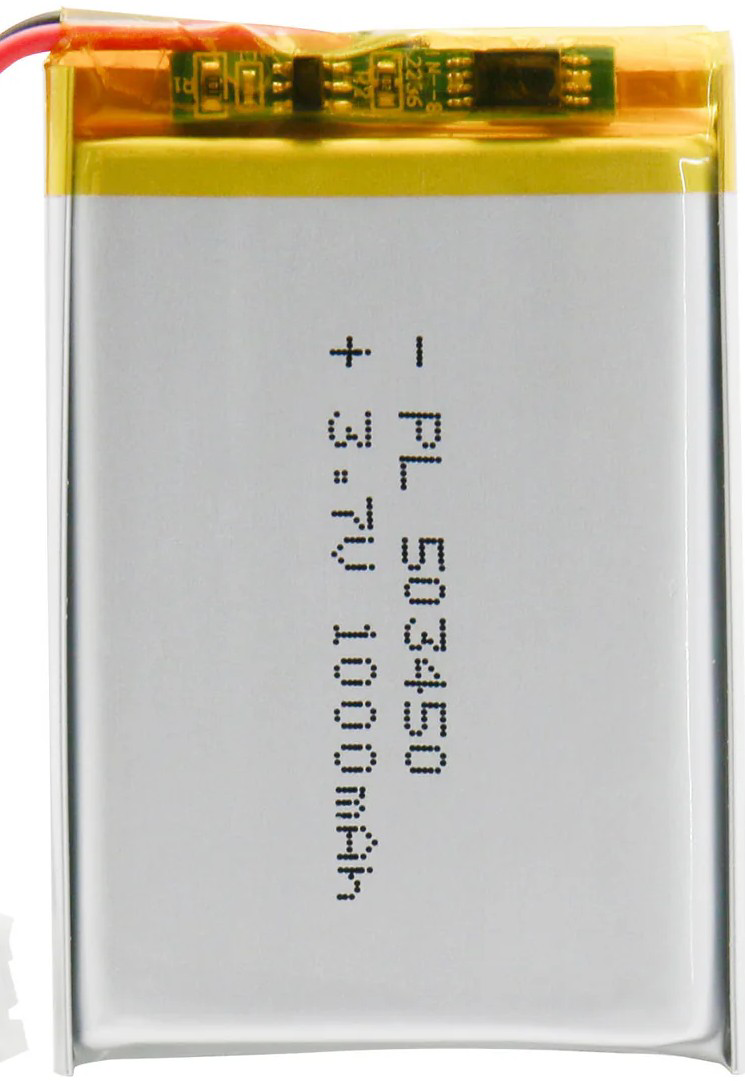

The Lipo Lithium Polymer Ion Li-polymer Battery (Manufacturer: LIPO, Part ID: Rechargeable Bty) is a rechargeable battery that utilizes lithium polymer technology. Known for its lightweight design, high energy density, and flexibility in form factor, this battery is widely used in portable electronic devices. Its ability to deliver high power in a compact size makes it an essential component in modern electronics.

• Smartphones, tablets, and laptops
• Remote-controlled (RC) vehicles and drones
• Wearable devices (e.g., smartwatches, fitness trackers)
• Portable power banks
• Internet of Things (IoT) devices
• Robotics and embedded systems

Below are the key technical details for the Lipo Lithium Polymer Ion Li-polymer Battery:

The Lipo battery typically has two or three terminals:

1. Connecting the Battery:

   • Connect the positive terminal (+) to the positive input of your circuit.
   • Connect the negative terminal (-) to the ground of your circuit.
   • If the battery has a balance lead, connect it to a compatible balance charger for safe charging.

2. Charging the Battery:

   • Use a dedicated lithium polymer battery charger to ensure safe and efficient charging.
   • Set the charger to the correct voltage (4.2V per cell) and current (typically 0.5C to 1C of the battery's capacity).
   • Avoid overcharging or discharging below 3.0V per cell to prevent damage.

3. Discharging the Battery:

   • Ensure the load does not exceed the battery's maximum discharge rate (C-rating).
   • Use a battery protection circuit to prevent over-discharge, which can permanently damage the battery.

4. Mounting and Handling:

   • Secure the battery in your device to prevent physical damage or punctures.
   • Avoid exposing the battery to high temperatures or direct sunlight.

• Safety First: Always use a battery management system (BMS) to monitor voltage, current, and temperature.
• Storage: Store the battery at 40-60% charge in a cool, dry place for long-term storage.
• Avoid Short Circuits: Never short the terminals, as this can cause overheating or fire.
• Recycling: Dispose of the battery responsibly at a certified recycling facility.

To power an Arduino UNO with a Lipo battery, you can connect the battery to a DC-DC step-down converter to regulate the voltage to 5V. Below is an example circuit and code:

1. Connect the Lipo battery to the input of the DC-DC converter.
2. Set the output of the converter to 5V.
3. Connect the converter's output to the Arduino UNO's VIN and GND pins.

// Example code to read battery voltage using Arduino UNO
// Assumes a voltage divider circuit is used to scale the battery voltage
// to a safe range for the Arduino's analog input (0-5V).

const int batteryPin = A0; // Analog pin connected to the voltage divider
const float voltageDividerRatio = 2.0; // Adjust based on your resistor values
const float referenceVoltage = 5.0; // Arduino's reference voltage (5V)

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(batteryPin); // Read the analog input
  float batteryVoltage = (rawValue / 1023.0) * referenceVoltage * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

1. Battery Not Charging:

   • Cause: Charger not compatible or incorrect settings.
   • Solution: Use a dedicated Lipo charger and verify the voltage/current settings.

2. Battery Swelling:

   • Cause: Overcharging, over-discharging, or physical damage.
   • Solution: Stop using the battery immediately and dispose of it safely.

3. Short Battery Life:

   • Cause: Frequent deep discharges or high discharge rates.
   • Solution: Avoid discharging below 3.0V per cell and use a battery with a higher capacity or C-rating.

4. Battery Overheating:

   • Cause: Excessive current draw or environmental temperature.
   • Solution: Reduce the load or improve ventilation around the battery.

• Q: Can I use a Lipo battery without a protection circuit?
  A: It is not recommended. A protection circuit prevents overcharging, over-discharging, and short circuits.

• Q: How do I know when the battery is fully charged?
  A: The charger will indicate full charge when the voltage reaches 4.2V per cell.

• Q: Can I connect multiple Lipo batteries in series or parallel?
  A: Yes, but ensure proper balancing and use a charger designed for multi-cell configurations.

• Q: What happens if I puncture the battery?
  A: Puncturing a Lipo battery can cause a fire or explosion. Handle with care and avoid physical damage.

By following these guidelines, you can safely and effectively use the Lipo Lithium Polymer Ion Li-polymer Battery in your projects.
