How to Use PC817C: Examples, Pinouts, and Specs

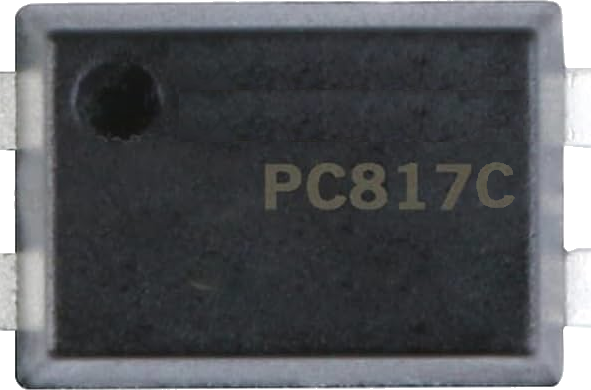

The PC817C is an optocoupler that integrates a light-emitting diode (LED) and a phototransistor within a single package. This component is designed to provide electrical isolation between two sections of a circuit while enabling signal transmission. By using optical coupling, the PC817C ensures that high voltages or electrical noise in one part of the circuit do not affect the other, making it ideal for applications requiring isolation and protection.

• Microcontroller interfacing with high-voltage circuits
• Signal isolation in industrial control systems
• Noise suppression in communication systems
• Power supply feedback circuits
• Motor control and inverter circuits

The PC817C comes in a 4-pin Dual Inline Package (DIP). The pinout is as follows:

1. Input Side (LED):

   • Connect the anode (Pin 1) to the positive side of the input signal through a current-limiting resistor.
   • Connect the cathode (Pin 2) to the ground of the input circuit.
   • Choose the resistor value to limit the forward current to 10-20mA for optimal performance. Use Ohm's Law:
     [ R = \frac{V_{in} - V_f}{I_f} ]
     where (V_{in}) is the input voltage, (V_f) is the forward voltage (1.2V typical), and (I_f) is the desired forward current.

2. Output Side (Phototransistor):

   • Connect the collector (Pin 4) to the positive supply voltage through a pull-up resistor.
   • Connect the emitter (Pin 3) to the ground of the output circuit.
   • The pull-up resistor value depends on the desired output current and voltage levels.

Below is an example of connecting the PC817C to an Arduino UNO for isolating a digital input signal:

• Input Side: A 5V signal is applied to the LED with a 220Ω resistor.
• Output Side: The phototransistor is connected to a 10kΩ pull-up resistor.

// PC817C Optocoupler Example with Arduino UNO
// This code reads the output of the PC817C and toggles an LED accordingly.

const int optoInputPin = 2;  // Pin connected to the PC817C output
const int ledPin = 13;       // Built-in LED on Arduino UNO

void setup() {
  pinMode(optoInputPin, INPUT);  // Set optoInputPin as input
  pinMode(ledPin, OUTPUT);      // Set ledPin as output
  digitalWrite(ledPin, LOW);    // Turn off LED initially
}

void loop() {
  int optoState = digitalRead(optoInputPin);  // Read the optocoupler output

  if (optoState == HIGH) {
    digitalWrite(ledPin, HIGH);  // Turn on LED if optocoupler output is HIGH
  } else {
    digitalWrite(ledPin, LOW);   // Turn off LED if optocoupler output is LOW
  }
}

• Current Limiting Resistor: Always use a resistor in series with the LED to prevent damage due to excessive current.
• Pull-Up Resistor: Use an appropriate pull-up resistor on the phototransistor side to ensure proper voltage levels.
• Isolation: Ensure that the input and output grounds are not connected to maintain isolation.
• CTR Selection: Choose a PC817C variant with a suitable Current Transfer Ratio (CTR) for your application.

1. No Output Signal:

   • Cause: The LED is not receiving sufficient current.
   • Solution: Check the input resistor value and ensure the forward current is within the recommended range (10-20mA).

2. Output Signal is Weak or Unstable:

   • Cause: The pull-up resistor value is too high or too low.
   • Solution: Adjust the pull-up resistor value (typically 4.7kΩ to 10kΩ).

3. No Isolation Between Circuits:

   • Cause: Input and output grounds are connected.
   • Solution: Ensure complete electrical isolation between the input and output sides.

4. Overheating:

   • Cause: Excessive current through the LED or phototransistor.
   • Solution: Verify that the input and output currents are within the specified limits.

Q: Can the PC817C handle AC signals?
A: Yes, the PC817C can handle AC signals on the input side, but you must use a rectifier circuit to ensure proper operation.

Q: What is the maximum switching speed of the PC817C?
A: The PC817C has a typical switching time of 2-4µs, making it suitable for low- to medium-speed applications.

Q: Can I use the PC817C for analog signal transmission?
A: The PC817C is primarily designed for digital signal isolation. While it can transmit analog signals, the linearity and accuracy may be limited.

Q: How do I choose the correct CTR value?
A: Select a PC817C variant with a CTR range that matches your circuit's input and output current requirements. For example, higher CTR values are better for low-current applications.
