How to Use solar panel: Examples, Pinouts, and Specs

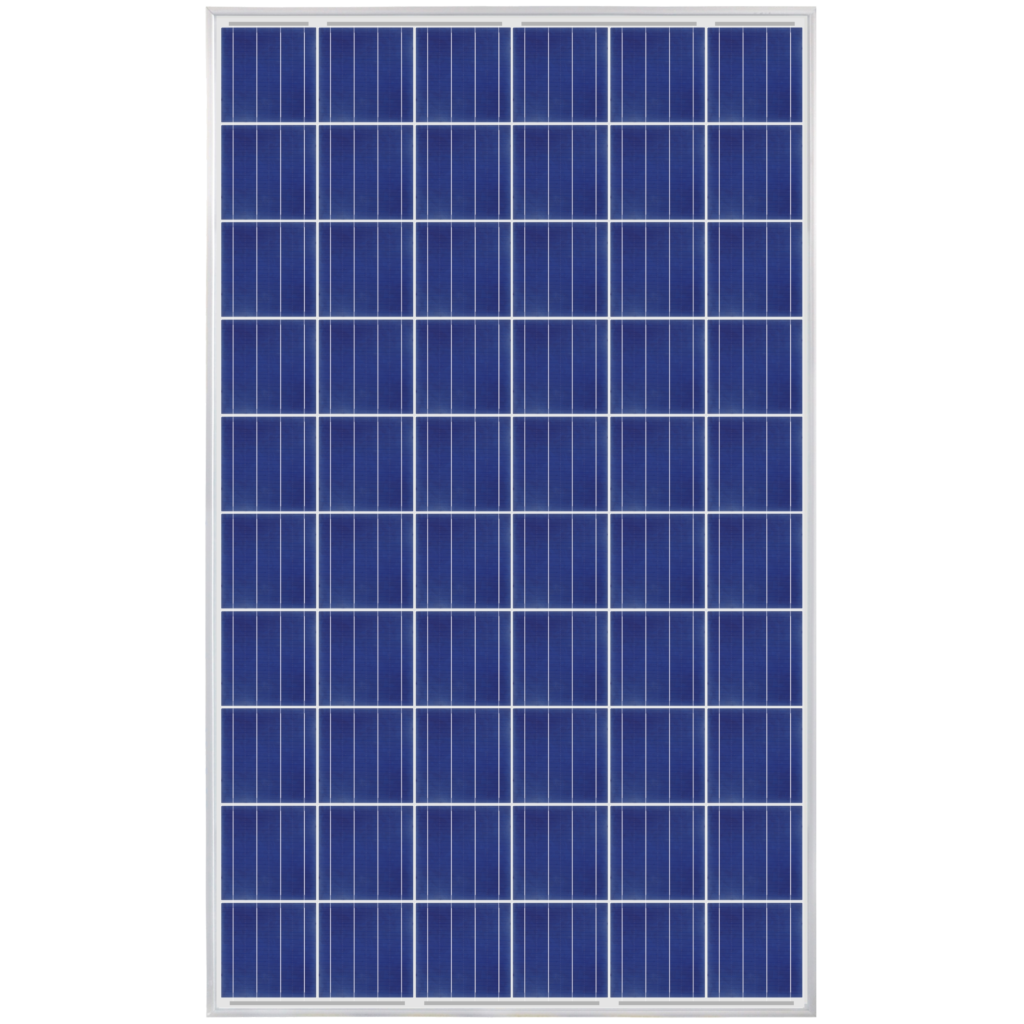

A solar panel, manufactured by Power Supply (Part ID: Panel), is a device that converts sunlight into electrical energy using photovoltaic (PV) cells. It provides a renewable and sustainable source of power, making it an essential component in modern energy systems. Solar panels are widely used in residential, commercial, and industrial applications, including powering homes, charging batteries, and supporting off-grid systems.

• Residential and commercial solar energy systems
• Off-grid power solutions for remote areas
• Solar-powered devices (e.g., lights, fans, and chargers)
• Integration with battery storage systems
• Renewable energy research and educational projects

Solar panels typically have two output terminals for electrical connections:

1. Positioning the Panel: Place the solar panel in an area with maximum sunlight exposure. Ensure the panel is angled correctly based on your geographic location to optimize energy generation.
2. Connecting to a Load or Battery:
   • Use the positive (+) and negative (-) terminals to connect the panel to a charge controller.
   • The charge controller regulates the voltage and current to safely charge a battery or power a load.
3. Wiring: Use appropriate gauge wires to handle the current output of the panel. Ensure all connections are secure and insulated.
4. Integration with an Inverter: If AC power is required, connect the output of the charge controller to an inverter.

• Avoid Shading: Even partial shading can significantly reduce the panel's efficiency.
• Use a Charge Controller: Always use a charge controller to prevent overcharging or damaging connected batteries.
• Monitor Temperature: Ensure adequate ventilation to prevent overheating, especially in high-temperature environments.
• Series or Parallel Connections: For higher voltage, connect panels in series. For higher current, connect panels in parallel. Match the voltage and current ratings of connected panels.
• Maintenance: Regularly clean the panel surface to remove dirt, dust, or debris that may block sunlight.

To use a solar panel with an Arduino UNO, you can connect the panel to a battery via a charge controller and then power the Arduino from the battery. Below is an example code to read the battery voltage using the Arduino's analog input:

// Define the analog pin connected to the battery voltage divider
const int voltagePin = A0;

// Define the voltage divider ratio (adjust based on your resistor values)
const float voltageDividerRatio = 5.0;

// Variable to store the measured voltage
float batteryVoltage;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(voltagePin); // Read the analog input
  // Convert the analog value to voltage
  batteryVoltage = (sensorValue * 5.0 / 1023.0) * voltageDividerRatio;

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(batteryVoltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Use a voltage divider circuit to step down the battery voltage to a safe level for the Arduino's analog input (0-5V).

1. Low Power Output:

   • Cause: Insufficient sunlight or shading.
   • Solution: Ensure the panel is in direct sunlight and free from obstructions.

2. Overheating:

   • Cause: Poor ventilation or high ambient temperature.
   • Solution: Install the panel in a well-ventilated area and avoid placing it on heat-absorbing surfaces.

3. No Output Voltage:

   • Cause: Loose or faulty connections.
   • Solution: Check all wiring and ensure secure connections to the terminals.

4. Battery Not Charging:

   • Cause: Faulty charge controller or incorrect wiring.
   • Solution: Verify the charge controller's functionality and ensure proper wiring.

• Q: Can I connect the solar panel directly to a battery?
  A: It is not recommended. Always use a charge controller to regulate the voltage and current to prevent overcharging or damaging the battery.

• Q: How do I calculate the number of panels needed for my system?
  A: Determine your energy requirements (in watt-hours) and divide by the panel's daily energy output (considering sunlight hours and efficiency).

• Q: Can the panel be used indoors?
  A: Solar panels require direct sunlight for optimal performance. Indoor use is not recommended unless there is sufficient sunlight exposure.

• Q: How long does a solar panel last?
  A: Most solar panels have a lifespan of 25-30 years with proper maintenance.

By following this documentation, users can effectively integrate and maintain their Power Supply solar panel for various applications.
