How to Use L298N: Examples, Pinouts, and Specs

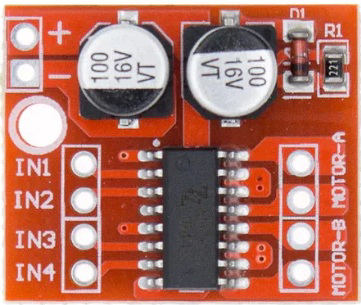

The L298N is a dual H-bridge motor driver manufactured by Custon (Part ID: L298N). It is designed to control the direction and speed of DC motors and stepper motors. With the ability to drive two motors simultaneously and handle up to 2A per channel, the L298N is a versatile and reliable choice for robotics, automation, and other motor control applications.

• Robotics and automation systems
• Remote-controlled vehicles
• Conveyor belts and industrial machinery
• DIY projects involving DC or stepper motors
• Educational projects for learning motor control

The L298N module typically includes the following pins for interfacing:

1. Power the Module: Connect the VCC pin to the motor power supply (5V to 46V) and the GND pin to the ground of your circuit.
2. Connect Motors: Attach the motor wires to the output pins (OUT1, OUT2 for Motor A and OUT3, OUT4 for Motor B).
3. Control Logic: Use the IN1, IN2, IN3, and IN4 pins to control the direction of the motors. Apply a PWM signal to the ENA and ENB pins to control motor speed.
4. Logic Voltage: If your microcontroller operates at 5V logic, you can use the 5V pin on the module to power it.

• Heat Dissipation: The L298N can dissipate up to 25W of power. Use a heat sink or cooling fan to prevent overheating during high-current operation.
• Current Limitations: Ensure that the motors do not draw more than 2A per channel continuously to avoid damaging the module.
• Power Supply: Use a power supply that matches the voltage and current requirements of your motors.

Below is an example of how to control a DC motor using the L298N and an Arduino UNO:

// Define control pins for Motor A
const int ENA = 9;  // PWM pin for speed control
const int IN1 = 8;  // Direction control pin 1
const int IN2 = 7;  // Direction control pin 2

void setup() {
  // Set motor control pins as outputs
  pinMode(ENA, OUTPUT);
  pinMode(IN1, OUTPUT);
  pinMode(IN2, OUTPUT);
}

void loop() {
  // Rotate motor forward
  digitalWrite(IN1, HIGH);  // Set IN1 high
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 150);    // Set speed (0-255)

  delay(2000);              // Run for 2 seconds

  // Rotate motor backward
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, HIGH);  // Set IN2 high
  analogWrite(ENA, 150);    // Set speed (0-255)

  delay(2000);              // Run for 2 seconds

  // Stop motor
  digitalWrite(IN1, LOW);   // Set IN1 low
  digitalWrite(IN2, LOW);   // Set IN2 low
  analogWrite(ENA, 0);      // Set speed to 0

  delay(2000);              // Wait for 2 seconds
}

1. Motors Not Running:

   • Ensure the power supply voltage matches the motor's requirements.
   • Verify that the ENA and ENB pins are receiving a valid PWM signal.
   • Check the wiring of the control and motor output pins.

2. Overheating:

   • Use a heat sink or cooling fan to dissipate heat.
   • Ensure the motors do not exceed the 2A continuous current limit.

3. Erratic Motor Behavior:

   • Check for loose connections or faulty wiring.
   • Ensure the control logic signals are stable and within the specified voltage range.

Q: Can the L298N drive stepper motors?
A: Yes, the L298N can drive stepper motors by controlling the sequence of the IN1, IN2, IN3, and IN4 pins.

Q: Can I use the L298N with a 3.3V microcontroller?
A: The L298N requires a minimum logic high voltage of 2.3V, so it is compatible with 3.3V microcontrollers. However, ensure proper interfacing to avoid voltage mismatches.

Q: What is the maximum motor voltage supported?
A: The L298N supports motor voltages up to 46V. Ensure your power supply does not exceed this limit.
