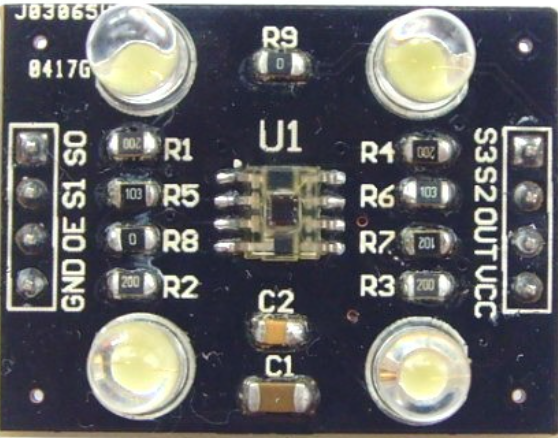

Image of Colour SensorDesign with Colour Sensor in Cirkit Designer

Introduction

The TCS3200 Colour Sensor by Robodo is a versatile and highly accurate device designed to detect and measure the color of an object or light source. It operates by converting light intensity into frequency signals, which can then be processed by a microcontroller. This sensor is widely used in robotics, automation, and industrial applications for tasks such as color sorting, object recognition, and navigation.

Explore Projects Built with Colour Sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Arduino UNO with TCS34725 Color Sensor and LDR Light Detection: A project utilizing Colour Sensor in a practical application
Arduino UNO with TCS34725 Color Sensor and LDR Light Detection

This circuit features an Arduino UNO microcontroller connected to an Adafruit TCS34725 RGB Color Sensor and a photocell (LDR) with a 10k Ohm resistor forming a voltage divider connected to the Arduino's analog input A0. The RGB sensor is interfaced with the Arduino via I2C communication, using SDA and SCL lines. The purpose of this circuit is likely to measure ambient light intensity with the photocell and detect colors with the RGB sensor, both interfaced with the Arduino for processing and potential output of the sensor data.

Open Project in Cirkit Designer

Common Applications and Use Cases


Technical Specifications

The TCS3200 Colour Sensor is built with an array of photodiodes and an integrated frequency-to-voltage converter. Below are its key technical details:

Key Technical Details

Parameter Value
Operating Voltage 2.7V to 5.5V
Operating Current 2mA (typical)
Output Type Square wave (frequency)
Frequency Range 2Hz to 500kHz
Light Source Onboard white LEDs
Detection Range Full-spectrum, Red, Green, Blue
Operating Temperature -40°C to 85°C
Dimensions 28mm x 28mm

Pin Configuration and Descriptions

The TCS3200 module has a 6-pin interface. Below is the pinout description:

Pin Name Description
1 VCC Power supply input (2.7V to 5.5V). Connect to the 5V pin of your microcontroller.
2 GND Ground connection. Connect to the ground of your circuit.
3 S0 Output frequency scaling selection input (see usage instructions).
4 S1 Output frequency scaling selection input (see usage instructions).
5 S2 Photodiode filter selection input (selects Red, Green, Blue, or Clear).
6 S3 Photodiode filter selection input (selects Red, Green, Blue, or Clear).
7 OUT Output frequency signal. Connect to a microcontroller input pin.

Usage Instructions

The TCS3200 Colour Sensor is easy to integrate into a circuit and can be interfaced with microcontrollers like the Arduino UNO. Below are the steps to use the sensor effectively:

Connecting the Sensor

  1. Power Supply: Connect the VCC pin to the 5V pin of your microcontroller and the GND pin to ground.
  2. Frequency Scaling: Use the S0 and S1 pins to set the output frequency scaling:
    • S0 = LOW, S1 = LOW: Power down mode.
    • S0 = LOW, S1 = HIGH: 2% scaling.
    • S0 = HIGH, S1 = LOW: 20% scaling.
    • S0 = HIGH, S1 = HIGH: 100% scaling.
  3. Color Selection: Use the S2 and S3 pins to select the photodiode filter:
    • S2 = LOW, S3 = LOW: Red filter.
    • S2 = LOW, S3 = HIGH: Blue filter.
    • S2 = HIGH, S3 = LOW: Clear (no filter).
    • S2 = HIGH, S3 = HIGH: Green filter.
  4. Output Signal: Connect the OUT pin to a digital input pin on your microcontroller to read the frequency signal.

Sample Arduino Code

Below is an example of how to interface the TCS3200 Colour Sensor with an Arduino UNO:

// TCS3200 Colour Sensor Example Code
// Connect the sensor pins to the Arduino as follows:
// S0 -> Pin 8, S1 -> Pin 9, S2 -> Pin 10, S3 -> Pin 11, OUT -> Pin 7

#define S0 8
#define S1 9
#define S2 10
#define S3 11
#define OUT 7

void setup() {
  pinMode(S0, OUTPUT);
  pinMode(S1, OUTPUT);
  pinMode(S2, OUTPUT);
  pinMode(S3, OUTPUT);
  pinMode(OUT, INPUT);

  // Set frequency scaling to 20%
  digitalWrite(S0, HIGH);
  digitalWrite(S1, LOW);

  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  // Select Red filter
  digitalWrite(S2, LOW);
  digitalWrite(S3, LOW);
  int redFrequency = pulseIn(OUT, LOW); // Measure frequency for red
  delay(100);

  // Select Green filter
  digitalWrite(S2, HIGH);
  digitalWrite(S3, HIGH);
  int greenFrequency = pulseIn(OUT, LOW); // Measure frequency for green
  delay(100);

  // Select Blue filter
  digitalWrite(S2, LOW);
  digitalWrite(S3, HIGH);
  int blueFrequency = pulseIn(OUT, LOW); // Measure frequency for blue
  delay(100);

  // Print the frequency values
  Serial.print("Red: ");
  Serial.print(redFrequency);
  Serial.print(" Green: ");
  Serial.print(greenFrequency);
  Serial.print(" Blue: ");
  Serial.println(blueFrequency);

  delay(500); // Wait before the next reading
}

Important Considerations and Best Practices


Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Signal:

    • Ensure the sensor is powered correctly (VCC and GND connections).
    • Verify that the S0 and S1 pins are configured for frequency scaling.
  2. Inaccurate Color Detection:

    • Check for ambient light interference and use the onboard LEDs.
    • Ensure the sensor is properly calibrated for the target object.
  3. Fluctuating Readings:

    • Stabilize the sensor by securing it in a fixed position.
    • Use a delay between readings to allow the sensor to stabilize.
  4. Sensor Not Responding:

    • Verify the connections to the microcontroller.
    • Check the microcontroller code for errors or incorrect pin assignments.

FAQs

Q: Can the TCS3200 detect colors in low light conditions?
A: Yes, the onboard white LEDs provide sufficient illumination for color detection in low light environments.

Q: How do I calibrate the sensor for my application?
A: Measure the frequency output for known colors and create a mapping table in your code to interpret the readings accurately.

Q: Can I use the TCS3200 with a 3.3V microcontroller?
A: Yes, the sensor operates within a voltage range of 2.7V to 5.5V, making it compatible with 3.3V systems.

Q: What is the maximum distance for color detection?
A: The sensor works best when placed within 1-2 cm of the object for accurate readings.


This concludes the documentation for the TCS3200 Colour Sensor by Robodo.
