How to Use DC-DC 12V/24V to 5V 15A Converter 75W Step Down: Examples, Pinouts, and Specs

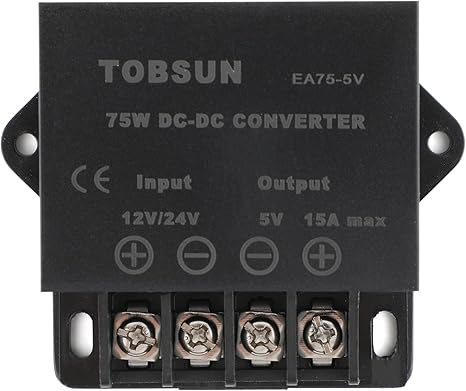

The DC-DC 12V/24V to 5V 15A Converter 75W Step Down, manufactured by Tobsun, is a high-efficiency power converter designed to step down input voltages of 12V or 24V to a stable 5V output. With a maximum output current of 15A and a power rating of 75W, this converter is ideal for powering a wide range of electronic devices, including microcontrollers, single-board computers, USB-powered devices, and automotive electronics.

• Powering USB devices such as smartphones, tablets, and cameras in vehicles.
• Supplying power to Raspberry Pi, Arduino, or other microcontroller-based projects.
• Automotive applications, such as powering GPS units, dashcams, or LED lighting.
• Industrial control systems requiring a stable 5V power source.

Below are the key technical details of the Tobsun DC-DC 12V/24V to 5V 15A Converter:

The converter has four connection terminals for input and output. The table below describes each terminal:

1. Connect the Input Voltage:
   • Connect the VIN+ terminal to the positive terminal of your 12V or 24V power source.
   • Connect the VIN- terminal to the ground of your power source.
2. Connect the Output Voltage:
   • Connect the VOUT+ terminal to the positive terminal of your load (e.g., a 5V device).
   • Connect the VOUT- terminal to the ground of your load.
3. Verify Connections:
   • Double-check all connections to ensure proper polarity and secure wiring.
4. Power On:
   • Turn on the input power source. The converter will automatically regulate the input voltage to provide a stable 5V output.

• Heat Dissipation: The converter may generate heat during operation, especially at high currents. Ensure adequate ventilation or use a heatsink if necessary.
• Input Voltage Range: Ensure the input voltage remains within the specified range (8V to 40V) to avoid damage to the converter.
• Load Current: Do not exceed the maximum output current of 15A to prevent overloading the converter.
• Wiring: Use appropriately rated wires for both input and output connections to handle the current safely.
• Polarity: Always observe correct polarity when connecting the input and output terminals to avoid damage.

The Tobsun DC-DC converter can be used to power an Arduino UNO from a 12V car battery. Below is an example wiring diagram and Arduino code to blink an LED:

1. Connect the VIN+ terminal of the converter to the positive terminal of the car battery.
2. Connect the VIN- terminal of the converter to the car battery ground.
3. Connect the VOUT+ terminal of the converter to the Arduino UNO's 5V pin.
4. Connect the VOUT- terminal of the converter to the Arduino UNO's GND pin.

// Simple LED Blink Example
// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered via the 5V output of the DC-DC converter.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Can this converter be used with a 24V solar panel?

   • Yes, as long as the panel's output voltage is within the 8V to 40V range.

2. What happens if the input voltage exceeds 40V?

   • The converter may be damaged. Always ensure the input voltage stays within the specified range.

3. Is the output voltage adjustable?

   • No, the output voltage is fixed at 5V.

4. Can I use this converter to charge USB devices?

   • Yes, the converter can power USB devices, but you may need a USB breakout board or adapter for proper connections.

By following this documentation, you can safely and effectively use the Tobsun DC-DC 12V/24V to 5V 15A Converter in your projects.
