How to Use ir sensor : Examples, Pinouts, and Specs

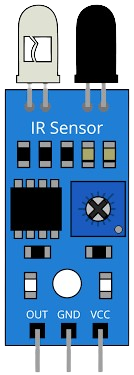

Image of ir sensor Design with ir sensor in Cirkit Designer

Introduction

An infrared (IR) sensor, manufactured by Arduino (Part ID: G), is a device designed to detect infrared radiation. It is commonly used in applications such as motion detection, proximity sensing, and remote control systems. The sensor operates by emitting or detecting IR light, which is invisible to the human eye but can be used to sense objects, measure distances, or detect heat signatures.

Explore Projects Built with ir sensor

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ESP32-Based Dual IR Sensor Interface: A project utilizing ir sensor  in a practical application
ESP32-Based Dual IR Sensor Interface

This circuit features an ESP32 microcontroller connected to two IR sensors. The IR sensors are interfaced with the ESP32 via digital input pins D14 and D13, allowing the microcontroller to detect and process signals from the sensors. Both sensors are powered by the ESP32's 3.3V output and share a common ground connection with the microcontroller.

Open Project in Cirkit Designer
Image of Arduino UNO IR Sensor Motion Detector: A project utilizing ir sensor  in a practical application
Arduino UNO IR Sensor Motion Detector

This circuit consists of an IR sensor connected to an Arduino UNO. The IR sensor's output is connected to digital pin D2 of the Arduino, while its power and ground pins are connected to the 5V and GND pins of the Arduino, respectively. The Arduino is programmed to read the sensor data and can be used for applications such as object detection or proximity sensing.

Open Project in Cirkit Designer

Common Applications:

Technical Specifications

Below are the key technical details of the Arduino IR Sensor (Part ID: G):

Parameter Value
Operating Voltage 3.3V to 5V
Operating Current 20mA (typical)
Detection Range 2 cm to 30 cm (depending on model)
Output Signal Digital (High/Low)
Wavelength 940 nm (typical)
Response Time < 2 ms
Operating Temperature -25°C to 85°C

Pin Configuration and Descriptions

The IR sensor typically has three pins, as described below:

Pin Name Description
1 VCC Power supply pin (3.3V to 5V)
2 GND Ground connection
3 OUT Digital output pin (High when no object detected,
Low when an object is detected)

Usage Instructions

How to Use the IR Sensor in a Circuit

  1. Connect the Pins:

    • Connect the VCC pin to the 5V pin of your microcontroller (e.g., Arduino UNO).
    • Connect the GND pin to the ground (GND) of your microcontroller.
    • Connect the OUT pin to a digital input pin on your microcontroller.
  2. Place the Sensor:

    • Position the IR sensor so that it faces the area where you want to detect objects or motion.
    • Ensure there are no obstructions between the sensor and the target area.
  3. Write the Code:

    • Use the following sample Arduino code to read the sensor's output and take action based on the detection status.
// IR Sensor Example Code for Arduino UNO
// This code reads the digital output of the IR sensor and turns on an LED
// when an object is detected.

const int irSensorPin = 2;  // Connect the OUT pin of the IR sensor to pin 2
const int ledPin = 13;      // Built-in LED on Arduino UNO

void setup() {
  pinMode(irSensorPin, INPUT);  // Set the IR sensor pin as input
  pinMode(ledPin, OUTPUT);      // Set the LED pin as output
  Serial.begin(9600);           // Initialize serial communication
}

void loop() {
  int sensorValue = digitalRead(irSensorPin);  // Read the sensor's output

  if (sensorValue == LOW) {
    // Object detected
    digitalWrite(ledPin, HIGH);  // Turn on the LED
    Serial.println("Object detected!");
  } else {
    // No object detected
    digitalWrite(ledPin, LOW);   // Turn off the LED
    Serial.println("No object detected.");
  }

  delay(100);  // Small delay for stability
}

Important Considerations and Best Practices

Troubleshooting and FAQs

Common Issues and Solutions

  1. The sensor is not detecting objects:

    • Verify the wiring connections (VCC, GND, and OUT).
    • Ensure the object is within the detection range (2 cm to 30 cm).
    • Check for obstructions or reflective surfaces that may interfere with detection.
  2. The sensor output is unstable:

    • Use a capacitor (e.g., 10 µF) across the power supply pins to filter noise.
    • Avoid placing the sensor in direct sunlight or near strong IR sources.
  3. The sensor is always HIGH or LOW:

    • Check if the sensor is damaged or faulty.
    • Test the sensor with a different microcontroller or power source.

FAQs

Q: Can the IR sensor detect transparent objects?
A: Transparent objects, such as glass, may not be detected effectively due to their low reflectivity in the IR spectrum.

Q: Can I use the IR sensor outdoors?
A: While the sensor can be used outdoors, strong sunlight or environmental IR sources may interfere with its performance.

Q: How do I increase the detection range?
A: The detection range is hardware-limited. For longer ranges, consider using a different IR sensor model or an ultrasonic sensor.

By following this documentation, you can effectively integrate the Arduino IR Sensor (Part ID: G) into your projects for reliable motion and proximity detection.
