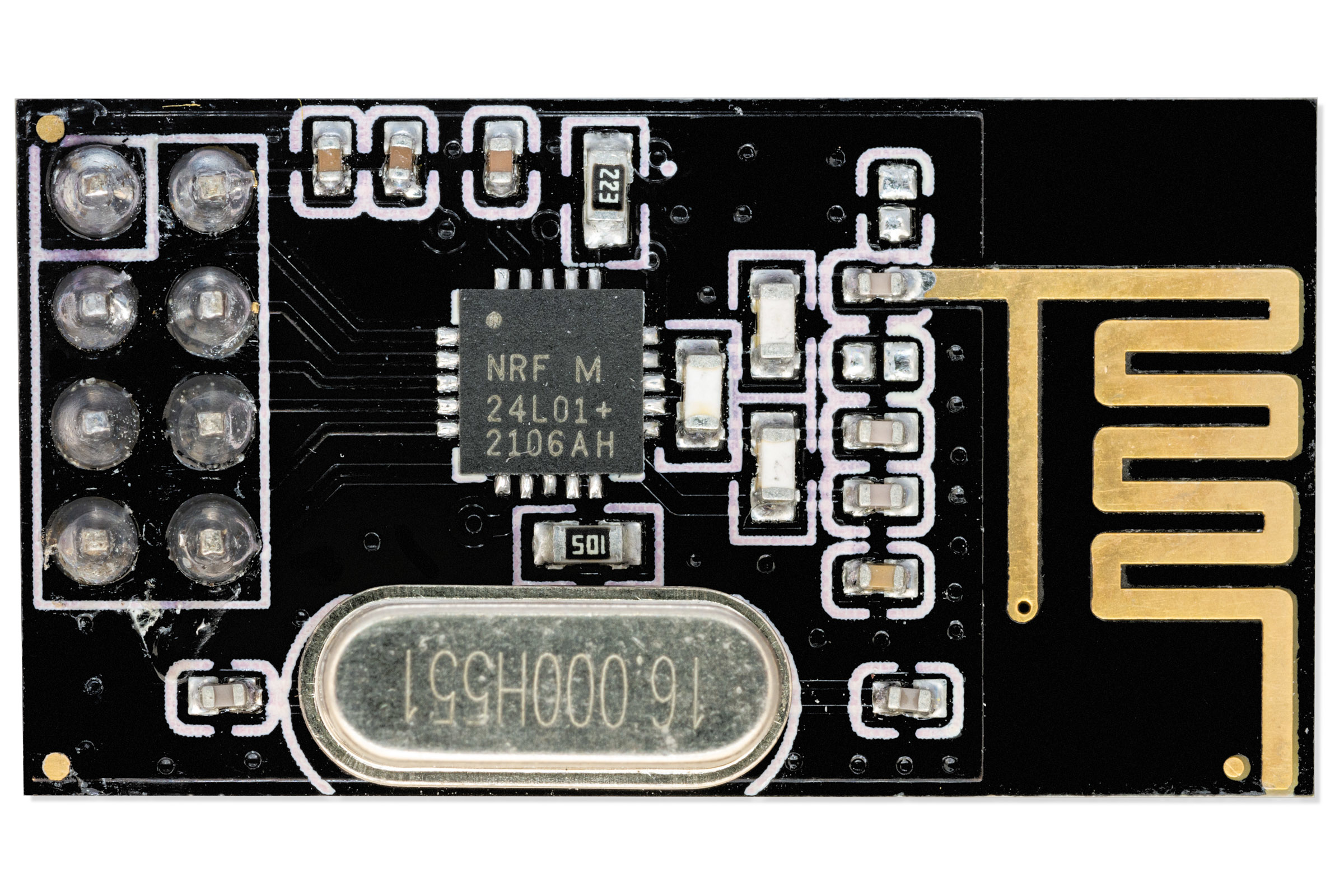

Image of NRF24l01
Cirkit Designer LogoDesign with NRF24l01 in Cirkit Designer

Introduction

The NRF24l01 is a low-power, 2.4 GHz wireless transceiver module designed for short-range communication. Manufactured by Arduino, this module is widely used in applications such as remote controls, wireless sensors, and IoT devices. It supports multiple data rates (250 kbps, 1 Mbps, and 2 Mbps) and features a built-in packet handling system, making it a reliable and efficient choice for wireless communication.

Explore Projects Built with NRF24l01

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino 101 with NRF24L01 Wireless Communication Module
Image of RC Transmitter: A project utilizing NRF24l01 in a practical application
This circuit connects an Arduino 101 microcontroller to an NRF24L01 wireless transceiver module. The Arduino provides power, ground, and SPI communication lines to the NRF24L01, enabling wireless data transmission capabilities. The connections suggest that the Arduino can control the NRF24L01 to send and receive data wirelessly, likely for remote sensing or control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and NRF24L01 Based Wireless Remote Control
Image of P.T.S CAR , REMOTE , ADVANCE , FINAL V1: A project utilizing NRF24l01 in a practical application
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module, powered by a 4 x AAA battery mount. Four pushbuttons are connected to the Arduino's digital inputs with pull-up resistors, and they are used to send different wireless commands via the NRF24L01 module when pressed. The Arduino's SPI interface (D11/MOSI, D12/MISO, D13/SCK) is used for communication with the NRF24L01, and digital pins D9 and D10 are used for the module's CE and CSN pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with NRF24L01 Wireless Communication Module
Image of Gesture Control Drone: A project utilizing NRF24l01 in a practical application
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling it to send and receive wireless data. The code for the Arduino is set up with empty setup and loop functions, ready for the user to implement the wireless communication logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with NRF24L01 Wireless Communication Module
Image of Nrf checker: A project utilizing NRF24l01 in a practical application
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling wireless data transmission. The code for the Arduino is currently a template with empty setup and loop functions, indicating that the specific functionality for the wireless communication has yet to be implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with NRF24l01

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of RC Transmitter: A project utilizing NRF24l01 in a practical application
Arduino 101 with NRF24L01 Wireless Communication Module
This circuit connects an Arduino 101 microcontroller to an NRF24L01 wireless transceiver module. The Arduino provides power, ground, and SPI communication lines to the NRF24L01, enabling wireless data transmission capabilities. The connections suggest that the Arduino can control the NRF24L01 to send and receive data wirelessly, likely for remote sensing or control applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of P.T.S CAR , REMOTE , ADVANCE , FINAL V1: A project utilizing NRF24l01 in a practical application
Arduino Nano and NRF24L01 Based Wireless Remote Control
This circuit features an Arduino Nano microcontroller interfaced with an NRF24L01 wireless transceiver module, powered by a 4 x AAA battery mount. Four pushbuttons are connected to the Arduino's digital inputs with pull-up resistors, and they are used to send different wireless commands via the NRF24L01 module when pressed. The Arduino's SPI interface (D11/MOSI, D12/MISO, D13/SCK) is used for communication with the NRF24L01, and digital pins D9 and D10 are used for the module's CE and CSN pins, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Gesture Control Drone: A project utilizing NRF24l01 in a practical application
Arduino UNO with NRF24L01 Wireless Communication Module
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling it to send and receive wireless data. The code for the Arduino is set up with empty setup and loop functions, ready for the user to implement the wireless communication logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Nrf checker: A project utilizing NRF24l01 in a practical application
Arduino UNO with NRF24L01 Wireless Communication Module
This circuit connects an Arduino UNO with an NRF24L01 wireless transceiver module. The Arduino provides power and SPI communication lines to the NRF24L01, enabling wireless data transmission. The code for the Arduino is currently a template with empty setup and loop functions, indicating that the specific functionality for the wireless communication has yet to be implemented.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Wireless sensor networks
  • Remote control systems (e.g., drones, RC cars)
  • Internet of Things (IoT) devices
  • Home automation systems
  • Wireless data logging

Technical Specifications

Below are the key technical details of the NRF24l01 module:

Parameter Value
Operating Frequency 2.4 GHz ISM band
Data Rate 250 kbps, 1 Mbps, 2 Mbps
Operating Voltage 1.9V to 3.6V
Current Consumption 11.3 mA (transmit at 0 dBm)
Standby Current 22 µA
Communication Protocol SPI
Maximum Range Up to 100 meters (line of sight)
Number of Channels 125
Output Power Programmable (-18 dBm to 0 dBm)
Dimensions 15 mm x 29 mm

Pin Configuration

The NRF24l01 module has 8 pins, as described in the table below:

Pin Name Description
1 GND Ground connection
2 VCC Power supply (1.9V to 3.6V, typically 3.3V)
3 CE Chip Enable: Activates the module for transmitting or receiving data
4 CSN Chip Select Not: Used to enable or disable SPI communication
5 SCK Serial Clock: Clock signal for SPI communication
6 MOSI Master Out Slave In: Data input to the NRF24l01 from the microcontroller
7 MISO Master In Slave Out: Data output from the NRF24l01 to the microcontroller
8 IRQ Interrupt Request: Indicates data received or transmission complete (optional)

Usage Instructions

Connecting the NRF24l01 to an Arduino UNO

To use the NRF24l01 module with an Arduino UNO, follow these steps:

  1. Connect the VCC pin of the NRF24l01 to the 3.3V pin on the Arduino UNO. Do not connect to 5V, as it may damage the module.
  2. Connect the GND pin of the NRF24l01 to the GND pin on the Arduino UNO.
  3. Connect the CE pin to a digital pin on the Arduino (e.g., pin 9).
  4. Connect the CSN pin to another digital pin on the Arduino (e.g., pin 10).
  5. Connect the SCK, MOSI, and MISO pins to the corresponding SPI pins on the Arduino UNO:
    • SCK → Pin 13
    • MOSI → Pin 11
    • MISO → Pin 12
  6. Optionally, connect the IRQ pin to a digital pin on the Arduino if you want to use interrupts.

Example Code

Below is an example Arduino sketch to send and receive data using the NRF24l01 module. This code uses the popular RF24 library.

#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Define CE and CSN pins
#define CE_PIN 9
#define CSN_PIN 10

// Create an RF24 object
RF24 radio(CE_PIN, CSN_PIN);

// Define the address for communication
const byte address[6] = "00001";

void setup() {
  Serial.begin(9600); // Initialize serial communication
  radio.begin();      // Initialize the NRF24l01 module
  radio.openWritingPipe(address); // Set the address for transmitting data
  radio.setPALevel(RF24_PA_LOW);  // Set power level to low
  radio.stopListening();          // Set the module to transmit mode
}

void loop() {
  const char text[] = "Hello, World!"; // Data to send
  bool success = radio.write(&text, sizeof(text)); // Send data

  if (success) {
    Serial.println("Data sent successfully!");
  } else {
    Serial.println("Data transmission failed.");
  }

  delay(1000); // Wait 1 second before sending again
}

Best Practices

  • Use a 10 µF capacitor between the VCC and GND pins to stabilize the power supply.
  • Avoid using long wires for SPI connections to minimize signal degradation.
  • Ensure the NRF24l01 module is powered by a stable 3.3V source. If using the Arduino UNO's 3.3V pin, verify it can supply sufficient current (at least 15 mA).
  • Use the RF24 library for simplified communication and configuration.

Troubleshooting and FAQs

Common Issues

  1. No communication between modules:

    • Ensure both modules are using the same address and data rate.
    • Verify the wiring and pin connections.
    • Check that the power supply is stable and within the specified range.
  2. Data transmission fails intermittently:

    • Add a capacitor (10 µF) across the VCC and GND pins to filter noise.
    • Reduce the data rate to improve reliability in noisy environments.
  3. Module not responding:

    • Confirm that the CE and CSN pins are correctly connected to the Arduino.
    • Ensure the RF24 library is installed and included in your sketch.

FAQs

Q: Can I use the NRF24l01 with a 5V microcontroller?
A: Yes, but you must use a level shifter or voltage divider for the SPI pins to avoid damaging the module. The VCC pin must be supplied with 3.3V.

Q: What is the maximum range of the NRF24l01?
A: The maximum range is up to 100 meters in line-of-sight conditions. However, obstacles and interference can reduce the range.

Q: How many devices can communicate with one NRF24l01 module?
A: The NRF24l01 supports up to 6 simultaneous data pipes, allowing communication with up to 6 devices.

Q: Can I use multiple NRF24l01 modules in the same area?
A: Yes, the module supports 125 channels, allowing multiple devices to operate without interference.

By following this documentation, you can effectively integrate the NRF24l01 module into your projects for reliable wireless communication.
